Studio Beam
All High End Systems Manuals, Diagrams and Software are being pulled directly from the High End Website. LightParts is not responsible for the content. If you cannot find a part here, please use our website search tool or call us so we can assist you.
Studio Beam Parts List
| Code | Name | Image | Price | |
| 80010101 | PCB, XLR Connector ASSY SP2 ST2 | $25.00 | ||
| 80010102 | PCB, 5 Pin XLR ASM | $144.40 | ||
| 80060006 | PCB, SBeam, x.Spot, Ignitor | $142.60 | ||
| 80140028 | Damper Shaft Tensioner, Pan/Tilt, STS575 | $42.00 | ||

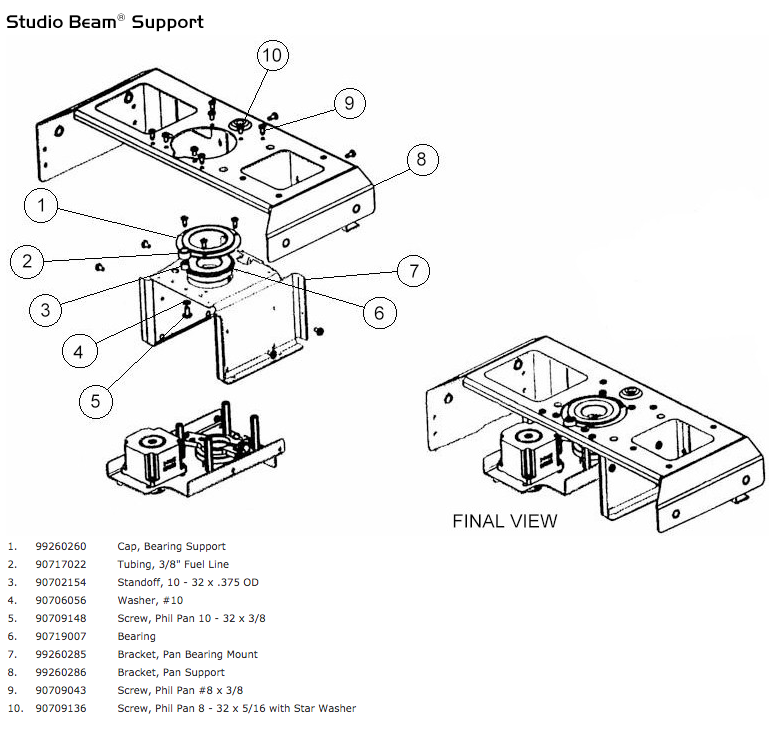

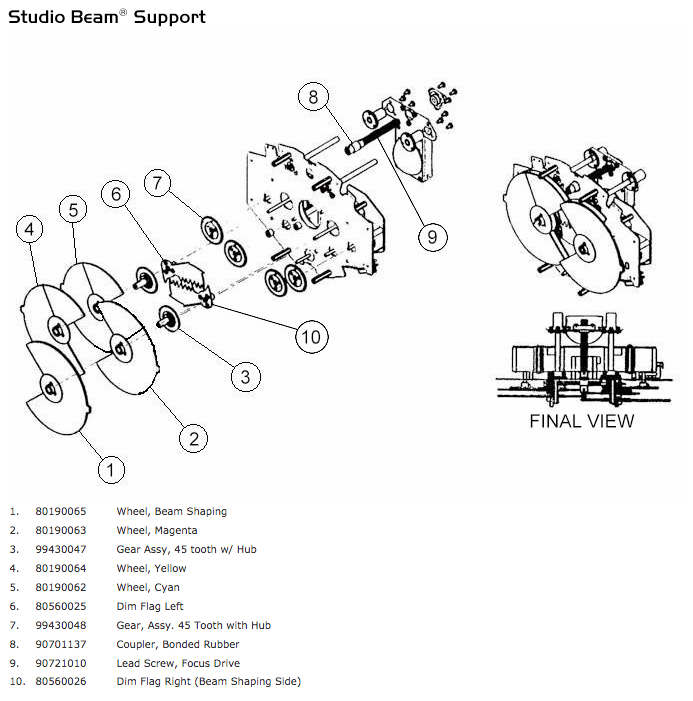

| 80190062 | Wheel, StBeam, Cyan Mix Wheel | $425.60 | ||
| 80190063 | Wheel, StBeam, Magenta Mix Wheel | $396.40 | ||
| 80190064 | Wheel, StBeam, Yellow Mix Wheel | $389.50 | ||
| 80190065 | Wheel, StBeam, Lenticular Glass **DISCONTINUED | $54.80 | ||
| 80470179 | Harness,XLR Jumper Cable | $6.00 | ||
| 80470203 | Wire Harness, Ignitor, SB | $49.90 | ||
| 80470206 | Wire,Relay To Logic PCB ASM SB | $18.60 | ||
| 80470209 | Cable,Lamp Power Supply to Logic ASM SB | $25.50 | ||
| 80560023 | Frost Flag Right, SBeam | $47.00 | ||
| 80560024 | Frost Flag Left, Beam w/Hub | $74.30 | ||
| 80560025 | Shutter Flag, Beam, Left | $32.30 | ||
| 80560026 | Shutter Flag, Beam, Right | $32.30 | ||

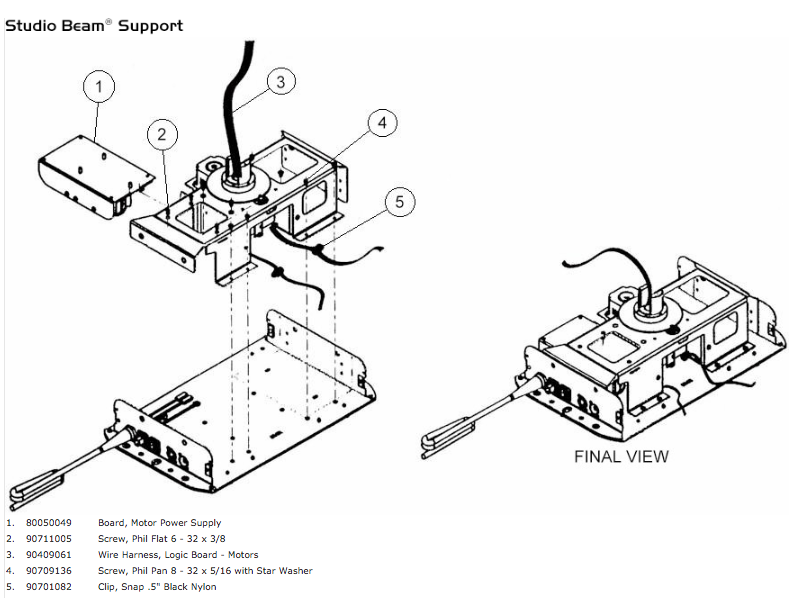

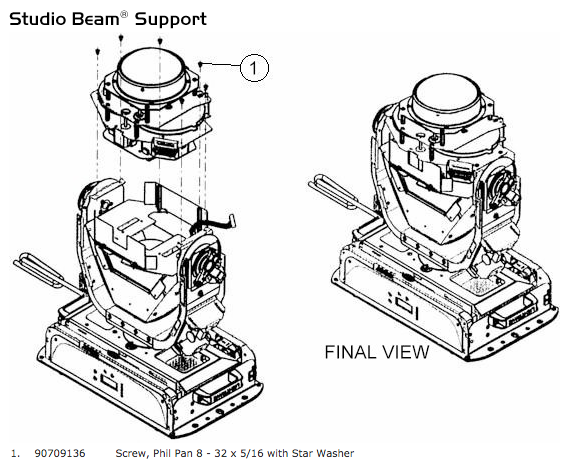

| 80570021 | Optical Module, SB | $2,202.10 | ||
| 80580033 | IR Filter ASM, Studio Beam | $141.60 | ||
| 90405306 | SWITCH, Interlock, Lamp, Sbeam | $16.60 | ||
| 90409049 | Cable, XLR to Logic ST250 | $14.70 | ||
| 90409061 | Harness, SB, PCB to Optical Module | $322.20 | ||
| 90410089 | Rubber foot, base High End ST250/575 | $1.70 | ||
| 90701187 | Stop, Wheel Retainer | $5.60 | ||
| 90701188 | Bumper, rubber, Sbeam lens | $7.10 | ||
| 90702148 | Spacer, .70 OD | $2.90 | ||
| 90702167 | Spacer, .55 OD | $4.10 | ||
| 90706083 | Washer, thrust HT .050, SS575 frost | $2.90 | ||
| 90707091 | Screw, Set 8-32 x 1/4 Socket Flat pt BZ | $0.80 | ||
| 90707093 | Screw, Set 6-32 x 3/16 Patch | $1.10 | ||
| 90709036 | Screw, #8 x 3/8 Phil Truss | $0.80 | ||
| 90711037 | Screw, 6-32 x 1/4 Phil Flat | $0.80 | ||
| 90711048 | Screw, 6-32 x 5/16 Phil Truss | $1.20 | ||
| 90720005 | Handle, Cyber, TB, side (small) | $18.00 | ||
| 99090043 | Lens, PC EFL-220MM Ormolu SIB | $56.70 | ||
| 99240022 | Cover,Yoke Arm St250/SB Blk | $78.80 | ||
| 99360006 | Belt, (Pan-SBeam & ST250)&(Tilt- SC M&S) | $10.50 | ||
| 99360046 | Belt, Tilt, Studio Command/Studio Pix | $11.80 | ||
| 99430048 | Gear, ASSY 45 Tooth W/Hub | $33.30 | ||
| 80010103LP | PCB, Sensor, dual, Studio 250 Assm | $35.00 | ||
| 80270015LP | Fan,ASSY Centrifugal Blower 13" Lead SB | $46.00 | ||
| 80450065LP | Bezel,ASSY Front Studio Beam | $300.00 | ||
| 80450066LP | Bezel,ASSY Rear Studio Beam | $275.00 | ||
| 90409063U | Harness,Motor Optical Module SBeam *USED* | $77.70 | ||
| 90410089U | Rubber foot, base High End ST250/575 *USED* | $0.70 | ||
| 90706098LP | Washer, Wave | $1.40 | ||
| 90706108LP | Washer,.505" ID X .750" OD Teflon | $0.90 | ||

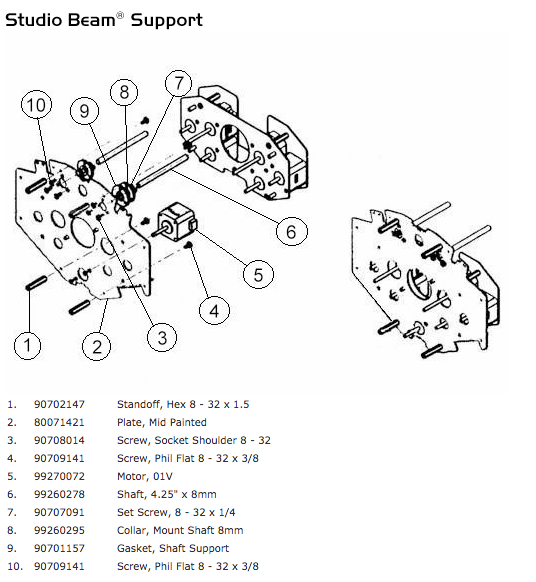

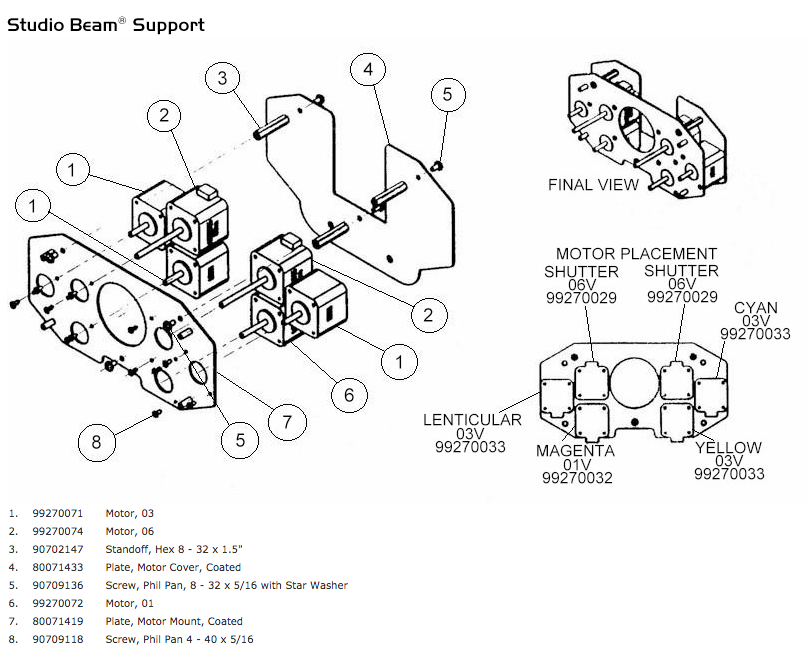

| 99270071LP | HES Motor 03V (Replaces 99270063,99270033) | $25.20 | ||
| 99270072LP | HES Motor 01V (Replaces 99270064,99270032) | $25.20 | ||
| 99270073LP | HES Motor 04V (Replaces 99270065,99270030) | $25.20 | ||
| 99270074LP | HES Motor 06V (Replaces 99270066,99270029) | $25.20 | ||
| 80470204 | Cord, AC Power, Studio Beam | $31.30 | ||
| 99360014 | Belt, Tilt, ST250 & SBeam | $11.90 | ||
| 80040021 | PCB, Sensor, Mini | $23.80 |
